SPECIFICATIONS

Brand Name: IPoster

Camera Resolution: 800*480

Car Fitment: Universal

Combination: A/V input

Compatible Vehicle Make: Toyota Nissan Jeep

Connection: RCA

Detection Angle: 170°

Function: Car Monitor

Make: iPoster

Model Number: IP-4300-OEM,IP-0009-AVBC

Place of Origin: Guangdong, China

Placement on Vehicle: Rear

Position: PIN

Power: 12-24V

Resolution: 800*480

Screen Display: TFT - LCD

Screen Size: 4.3 Inches

Screen Type: TFT - LCD

TV system: NTSC

Type: Monitors and cameras,Rear View Camera Surveillance Kit

Warranty: 1 Year

Waterproof: IP68

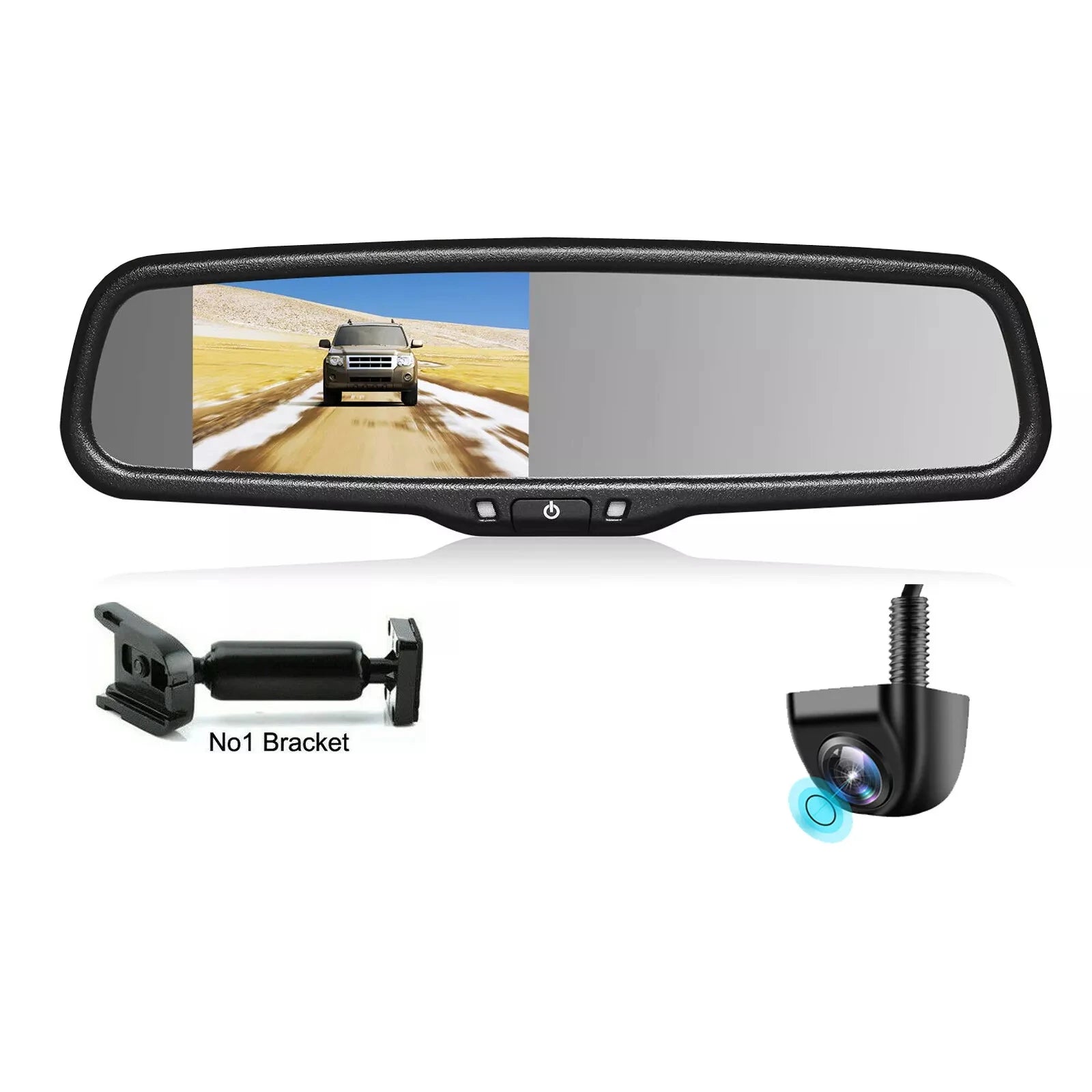

4.3‘’ Rear VIew Mirror Monitor No1 Bracket + Reversing Backup Camera For Toyota



NO.1 Applicable to bracket (Ford, GMC,
Hummer, Chevrolet, Ford Mustang, Toyota, Lincoln, Mazda, Chrysler, Chrysler, Honda, Kia, Nissan, Buick, Dodge, Opel, Mitsubishi, Infiniti, Cadillac, Jeep, Subaru) models, please scroll to the bottom for detailed Equipped with models.

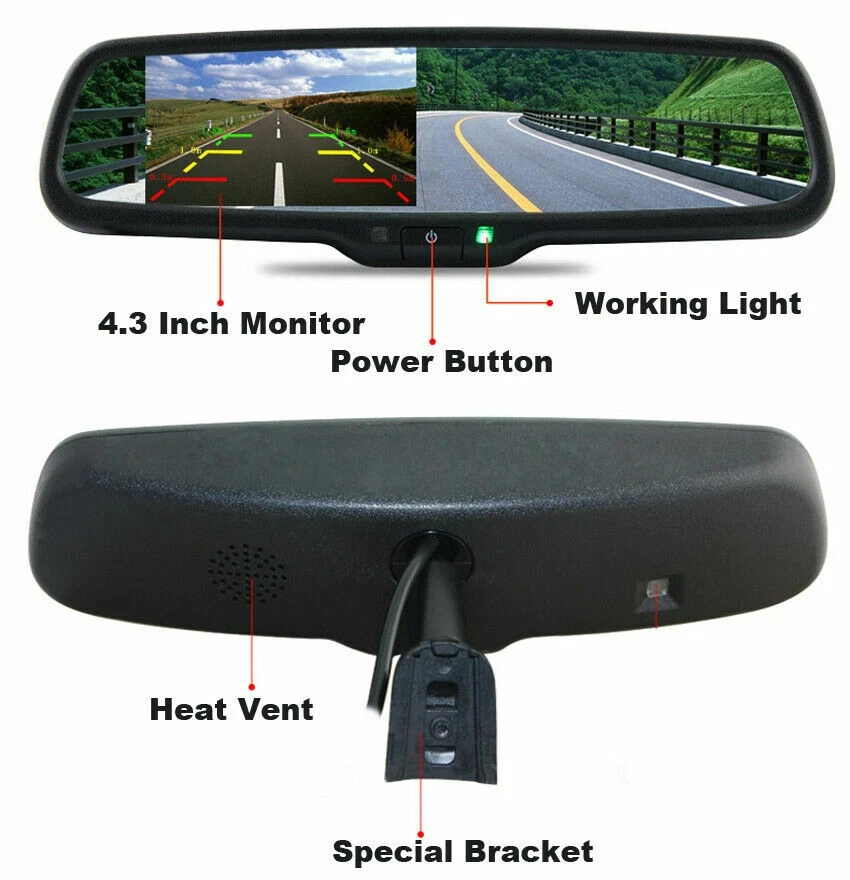

4.3 MIrror Mointor + NO 1 Bracket:



Descriptions:

Item Features:

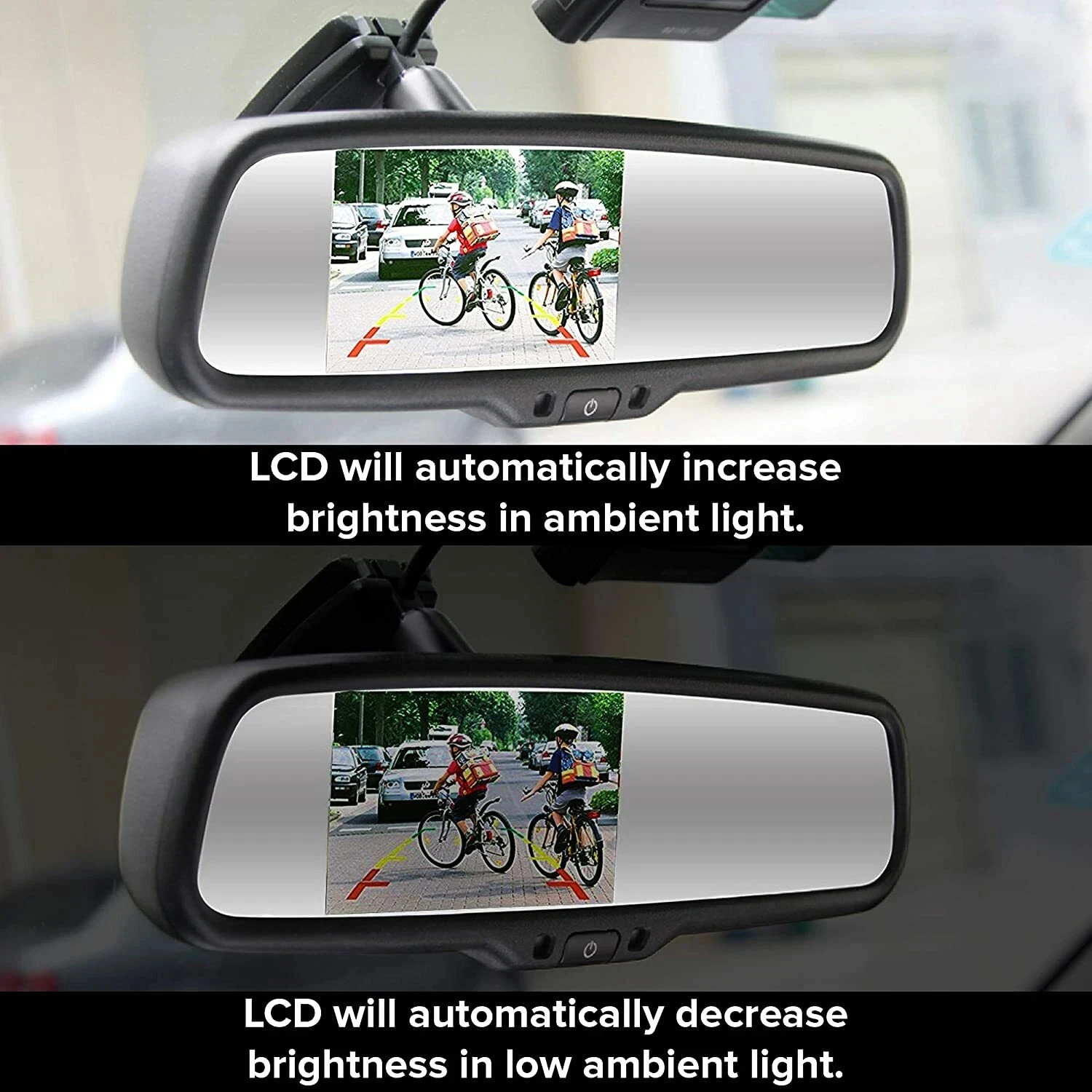

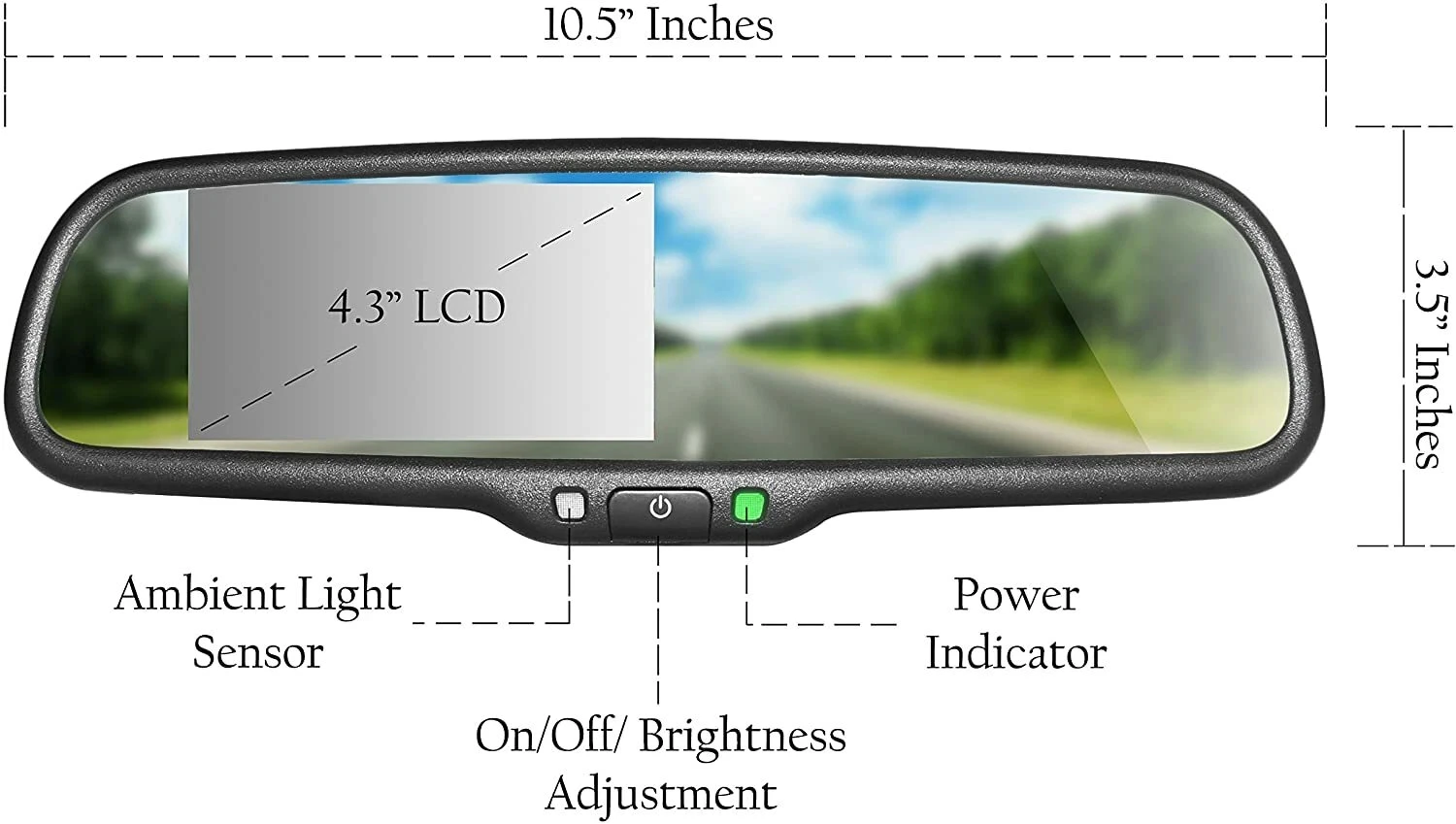

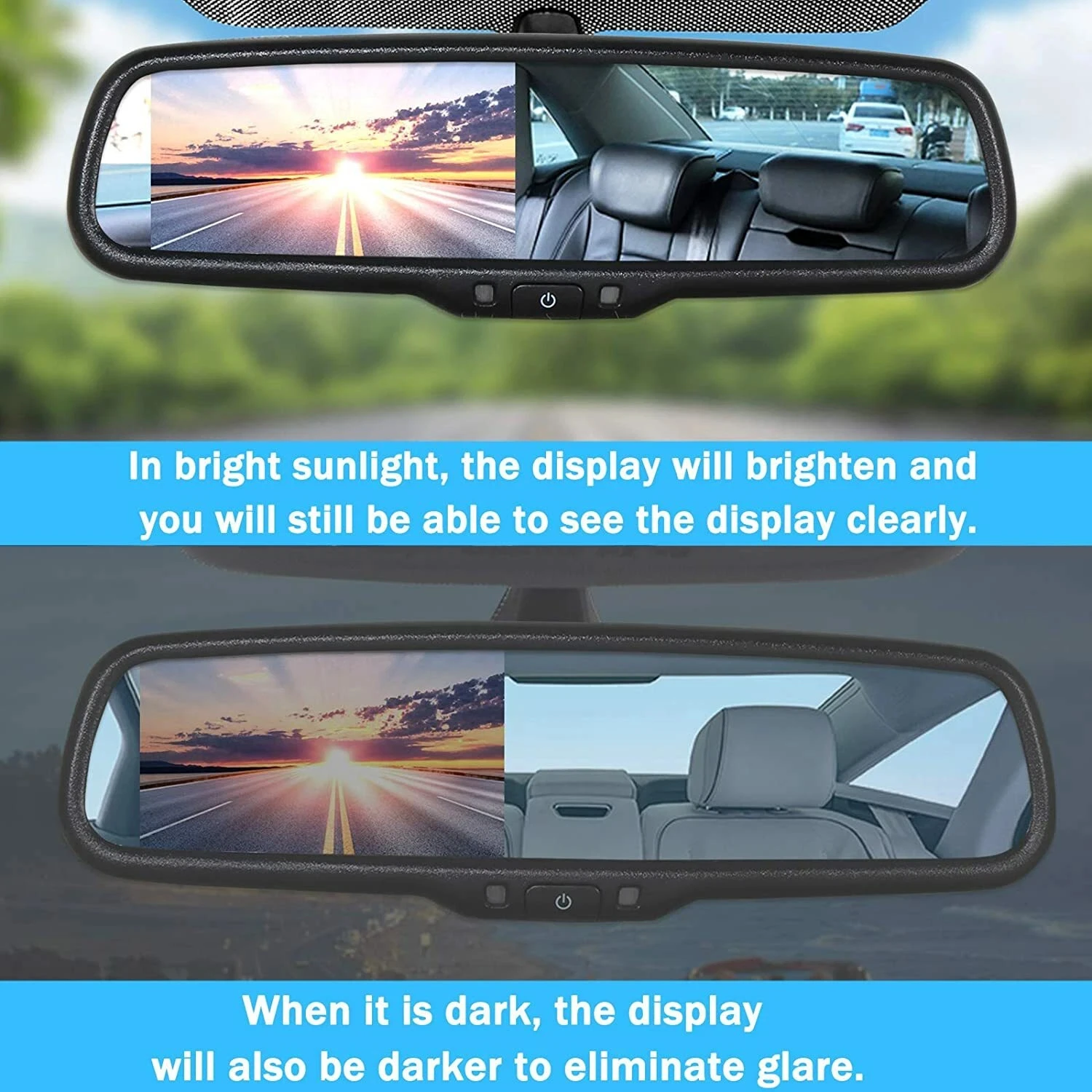

* Electronic auto dimming car rear view monitor.
* 4.3 inch TFT LCD display screen.
* HD 800*480 resolution.
* Special metal bracket perfect match your car.
* Auto switch to rear view image when you hand to reverse gear.
* Power: DC 12V, ≤ 2W.
* 2 Video input: AV1 for VCD/DVD, AV2 for rear view camera (camera not included).


* Note: Please make sure your original car bracket is same as our No.1 bracket (please contact with us if you need other models)

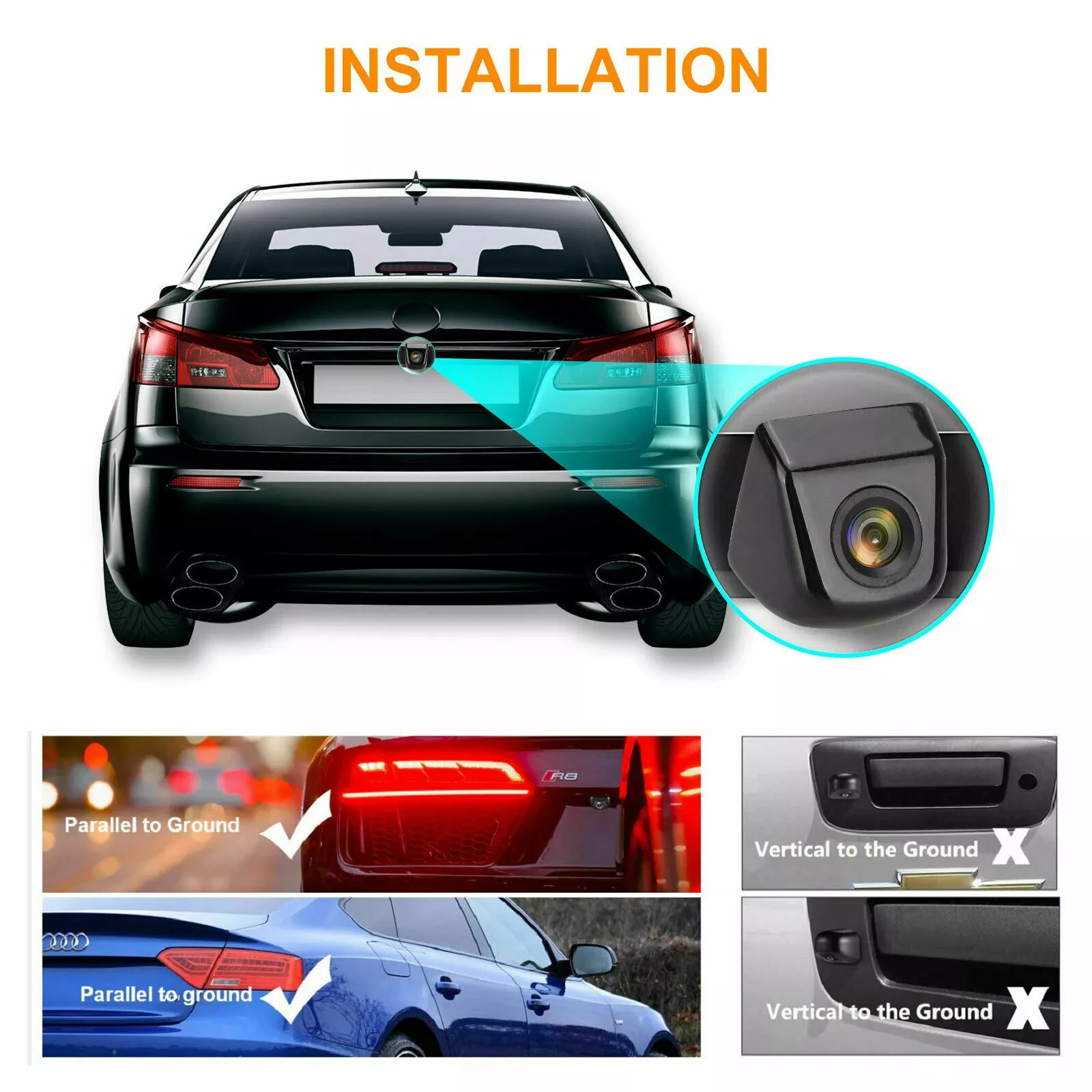

Installation:

1. Set the camera to the license plate of your car site
2. Adjust the camera lens to its best position.
3. Connect the power cord (red and black) to spotlight the power wires of your car.
4. Connect the video output (yellow) on the display.

100% brand new and high quality guaranteed.
High definition and up to 170 degrees wide viewing angle.
Support NTSC video system.
This camera can give you a full sight of the back of your car when you are driving.

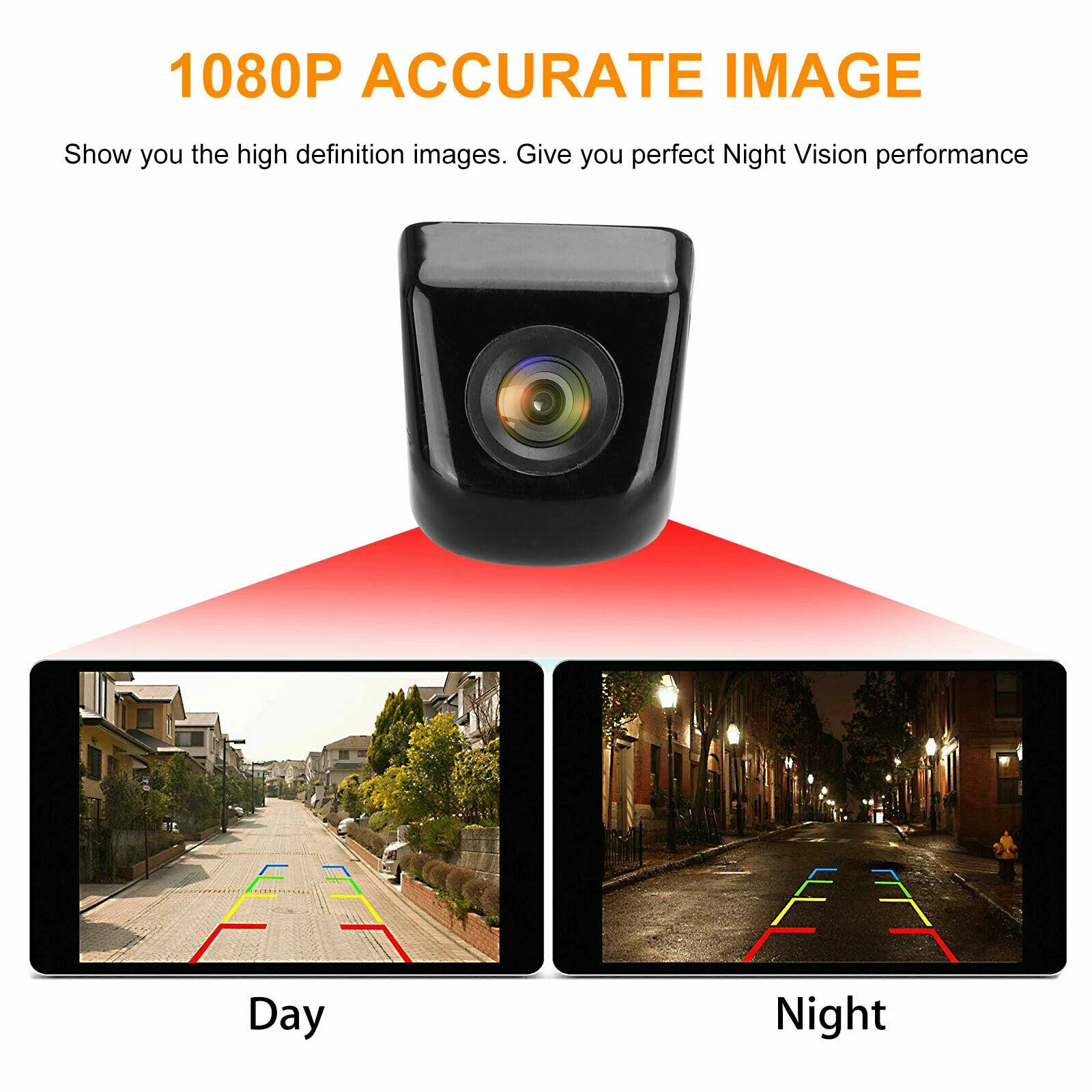

Night camera, you can easily get the clear situation in the dark.

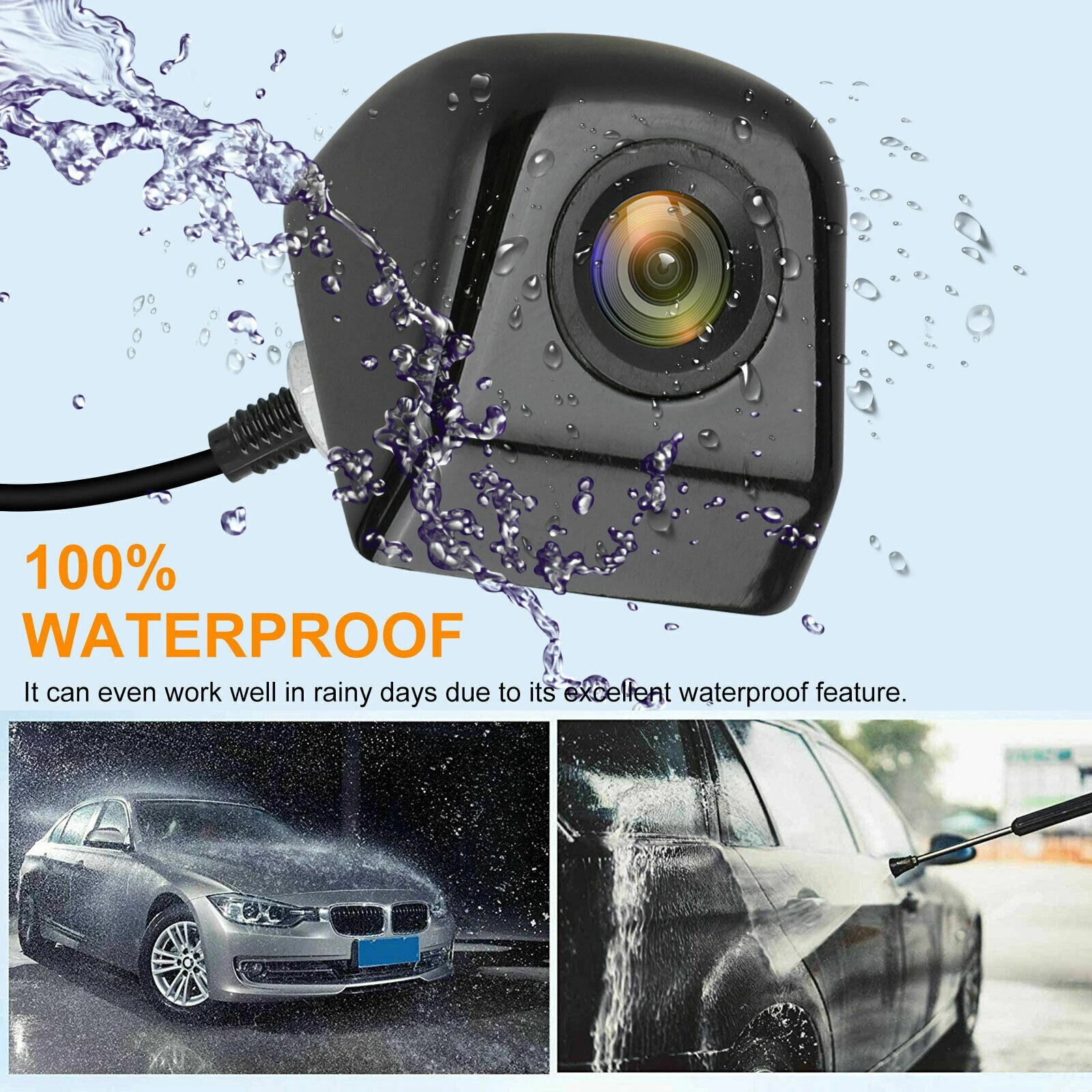

IP68 waterproof design
It helps to avoid incidents, accidents abrasion and ensure your safety.
Compact design, super easy to install and operate.
With high sensitivity, you can get rid of the poor rear vision.
Can connect to any type of monitor with a composite yellow RCA jack.

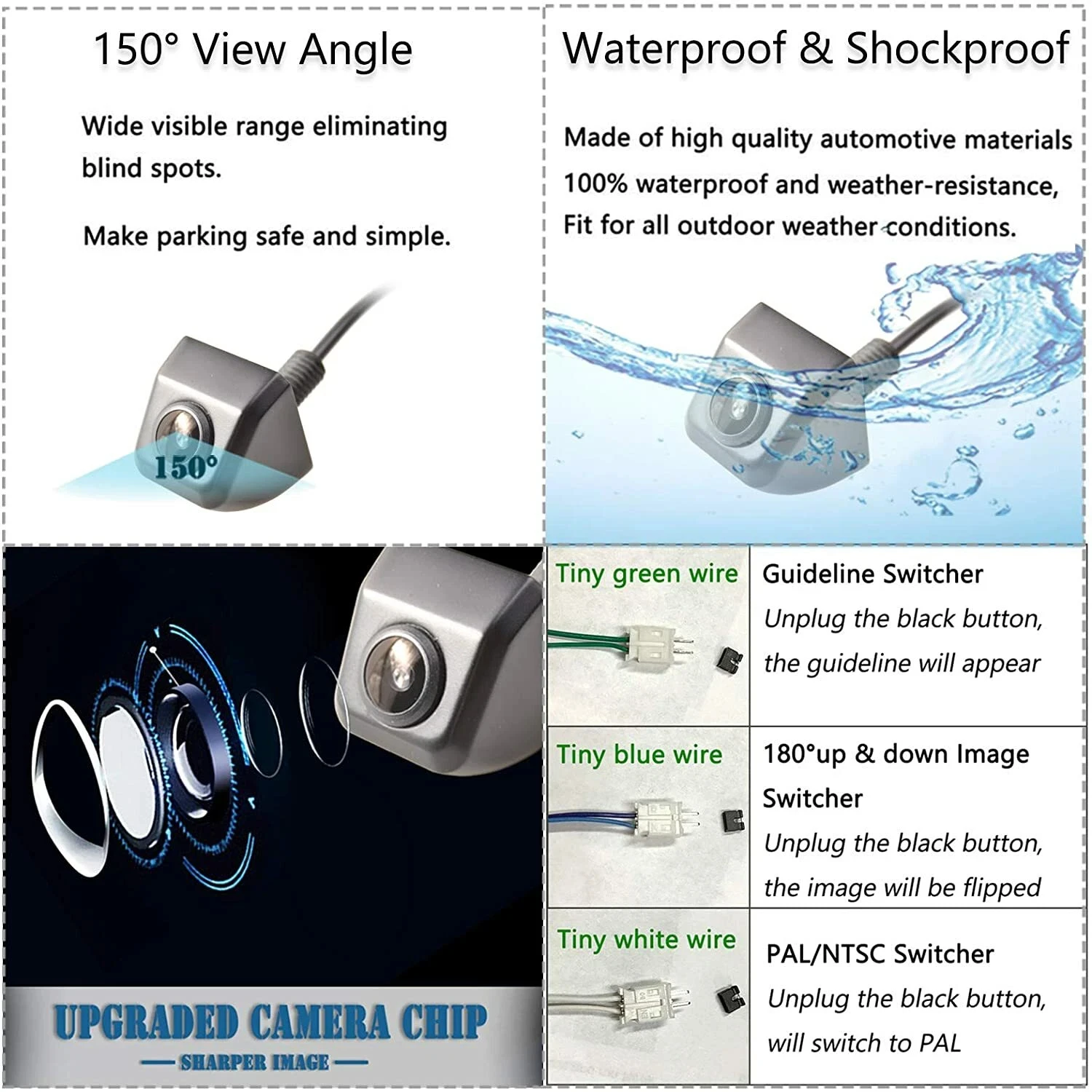

Camera:

Description:

Specification	Details
Image Sensor	7070
Signal System	NTSC
Effective Pixels	656 × 492
Sensitive Area	4.08 mm × 3.12 mm
Horizontal Resolution	420 TV lines
Minimum Illumination	0.1 Lux/F=1.2 (0 Lux with IR on)
Lens (Shot)	1.7 MM
Viewing Angle (Angle)	170°
SNR (Signal-to-Noise Ratio)	> 48 dB
Shutter Speed	1/60 - 1/20000
Video Output	1.0 VP-P, 75 Ω
Voltage	DC 12V
Current	100 mA
Operating Temperature	–20°C to 75°C, RH 95% MAX
Storage Temperature	–40°C to 85°C, RH 95% MAX
Waterproof Rating	IP68
Gamma Coefficient	0.45
White Balance	Auto
Scanning System	2:1 Interlace
Video Cable Length	19.7 ft / 6 m
Power Cord Length	3.94 ft / 120 cm
Net Weight	129 g



Features:

1. 100% brand new and high quality
2. Small compact size
3. Made of high quality and durable material

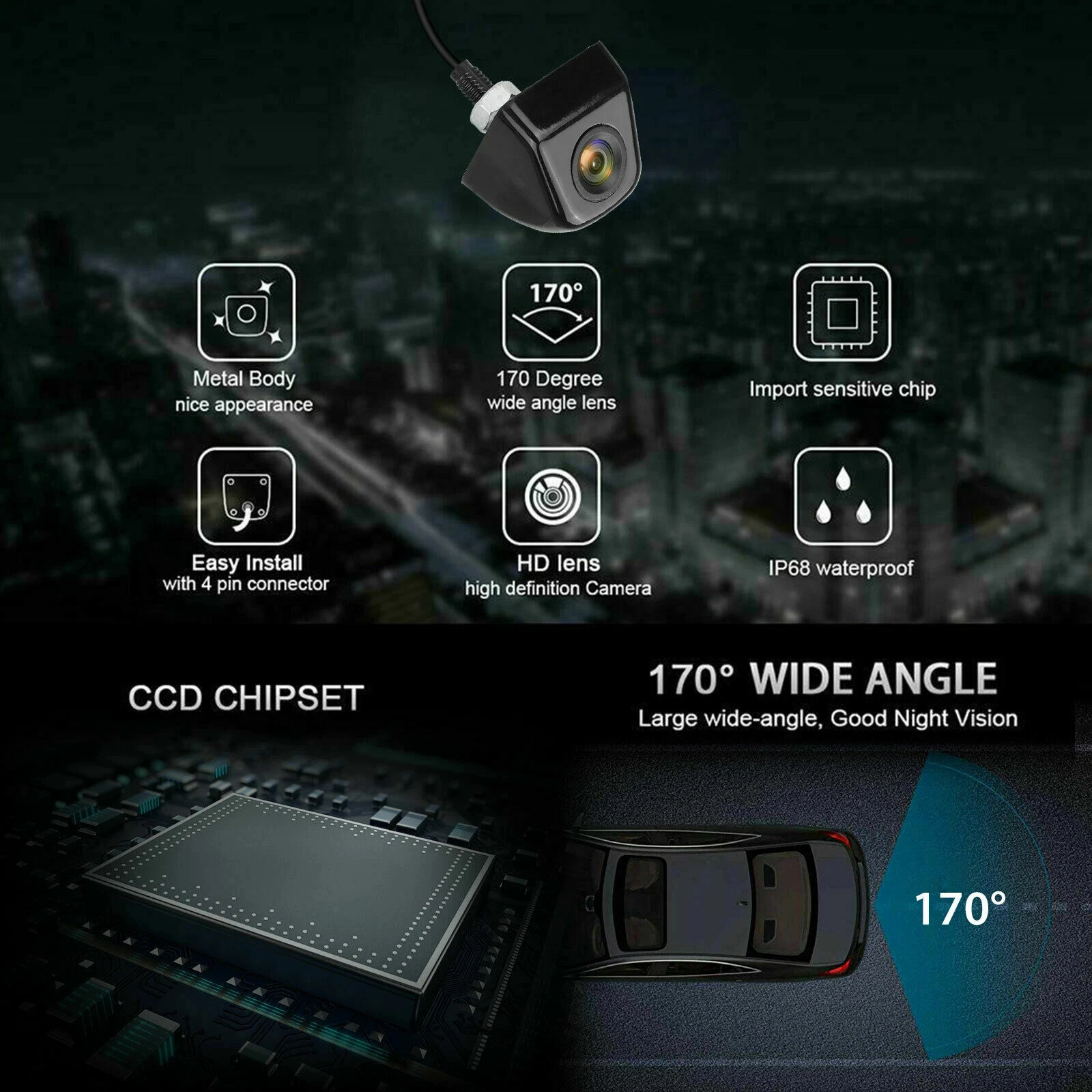

4. 170 degree adjustable wide viewing angle with high sensitivity &definition
5. IP67-compliant dustproof and waterproof
6. Low power consumption & maintenance
7. Works as a revising camera or security camera
8. Advanced the security when use it as a security camera
9. Outstanding rear view visibility on your car, boat, trailer, camper, truck, vehicle
10. Versatile compatibility can be connected to any type of monitor
11. Easy installation and can be installed in several ways, Mounts easily to existing license plate screws - no new mounting holes required
12.The guideline was built in.

Package Contents:

1 rearview camera for cars
1 power cord
1 6m video cable
1 monitor
1 bracket (No. 1)
1 power cord
1 user manual
